ip_grid_mod::ip_grid Type Reference

Abstract grid that holds fields and methods common to all grids. More...

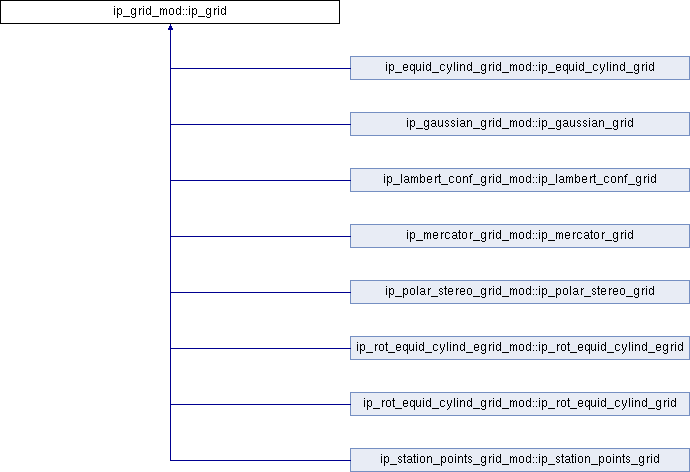

Inheritance diagram for ip_grid_mod::ip_grid:

Private Member Functions
procedure	field_pos
	Field position for a given grid point. More...
procedure(gdswzd_interface), deferred	gdswzd
	Coordinate transformations for the grid. More...
generic	init => init_grib1, init_grib2
procedure(init_grib1_interface), deferred	init_grib1
	Initializer for grib1 input descriptor. More...
procedure(init_grib2_interface), deferred	init_grib2
	Initializer for grib2 input descriptor. More...

Private Attributes
class(ip_grid_descriptor), allocatable	descriptor
real	eccen_squared
	Eccentricity of the Earth squared (e^2) More...
integer	im
	Number of x points. More...
integer	iwrap
	x wraparound increment (0 if no wraparound). More...
integer	jm
	Number of y points. More...
integer	jwrap1
	y wraparound lower pivot point (0 if no wraparound). More...
integer	jwrap2
	y wraparound upper pivot point (0 if no wraparound). More...
integer	kscan
	Mass/wind flag for staggered diagonal (0 if mass; 1 if wind) More...
integer	nm
	Total number of points. More...
integer	nscan
integer	nscan_field_pos
	nscan for field_pos routine. More...
real	rerth
	Radius of the Earth. More...

Detailed Description

Abstract grid that holds fields and methods common to all grids.

ip_grid is meant to be subclassed when implementing a new grid.

There are three methods that must be implemented:

• init_grib1
• init_grib2
• gdswzd

The init methods are responsible for setting up the grid using grib1/grib2 descriptors.

Gdswzd performs transformations to/from Earth coordinates and grid coordinates.

Author

Kyle Gerheiser

Date

July 2021

Definition at line 45 of file ip_grid_mod.f90.

Member Function/Subroutine Documentation

field_pos()

procedure ip_grid_mod::ip_grid::field_pos

private

Field position for a given grid point.

Definition at line 74 of file ip_grid_mod.f90.

gdswzd()

procedure(gdswzd_interface), deferred ip_grid_mod::ip_grid::gdswzd

private

Coordinate transformations for the grid.

Definition at line 72 of file ip_grid_mod.f90.

init()

generic ip_grid_mod::ip_grid::init

private

Definition at line 75 of file ip_grid_mod.f90.

init_grib1()

procedure(init_grib1_interface), deferred ip_grid_mod::ip_grid::init_grib1

private

Initializer for grib1 input descriptor.

Definition at line 68 of file ip_grid_mod.f90.

init_grib2()

procedure(init_grib2_interface), deferred ip_grid_mod::ip_grid::init_grib2

private

Initializer for grib2 input descriptor.

Definition at line 70 of file ip_grid_mod.f90.

Field Documentation

descriptor

class(ip_grid_descriptor), allocatable ip_grid_mod::ip_grid::descriptor

private

Definition at line 46 of file ip_grid_mod.f90.

eccen_squared

real ip_grid_mod::ip_grid::eccen_squared

private

Eccentricity of the Earth squared (e^2)

Definition at line 65 of file ip_grid_mod.f90.

im

integer ip_grid_mod::ip_grid::im

private

Number of x points.

Definition at line 48 of file ip_grid_mod.f90.

iwrap

integer ip_grid_mod::ip_grid::iwrap

private

x wraparound increment (0 if no wraparound).

Definition at line 61 of file ip_grid_mod.f90.

jm

integer ip_grid_mod::ip_grid::jm

private

Number of y points.

Definition at line 49 of file ip_grid_mod.f90.

jwrap1

integer ip_grid_mod::ip_grid::jwrap1

private

y wraparound lower pivot point (0 if no wraparound).

Definition at line 62 of file ip_grid_mod.f90.

jwrap2

integer ip_grid_mod::ip_grid::jwrap2

private

y wraparound upper pivot point (0 if no wraparound).

Definition at line 63 of file ip_grid_mod.f90.

kscan

integer ip_grid_mod::ip_grid::kscan

private

Mass/wind flag for staggered diagonal (0 if mass; 1 if wind)

Definition at line 57 of file ip_grid_mod.f90.

nm

integer ip_grid_mod::ip_grid::nm

private

Total number of points.

Definition at line 50 of file ip_grid_mod.f90.

nscan

integer ip_grid_mod::ip_grid::nscan

private

Parameters

Scanning

mode. 0 if x first then y; 1 if y first then x; 3 if staggered diagonal like projection 203.

Definition at line 56 of file ip_grid_mod.f90.

nscan_field_pos

integer ip_grid_mod::ip_grid::nscan_field_pos

private

nscan for field_pos routine.

Can be different than nscan due to differences in grib/grib2.

Definition at line 59 of file ip_grid_mod.f90.

rerth

real ip_grid_mod::ip_grid::rerth

private

Radius of the Earth.

Definition at line 64 of file ip_grid_mod.f90.

---

The documentation for this type was generated from the following file:

• ip_grid_mod.f90
